3D View Video Measuring System 6.5x zoom Lens RS232 Data Cable

Name: 3D View Video Measuring System 65x zoom Lens RS232 Data Cable
Brand: Sinowon
Price: 1 USD

Buy cheap 3D View Video Measuring System 6.5x zoom Lens RS232 Data Cable product

Brand Name : Sinowon

Model Number : iMS-3020P

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : 100% T/T In Advance

Supply Ability : 100 sets per month

Delivery Time : 25 work days

Packaging Details : plywood

Metal Table : 458x358mm

Glass Table : 356x248mm

Stroke : 300x200mm

Working distance : 200mm

Lens : 6.5x zoom lens

Connection : RS232 data cable

Contact Now

3D View Video Measuring System 6.5x zoom Lens RS232 Data Cable

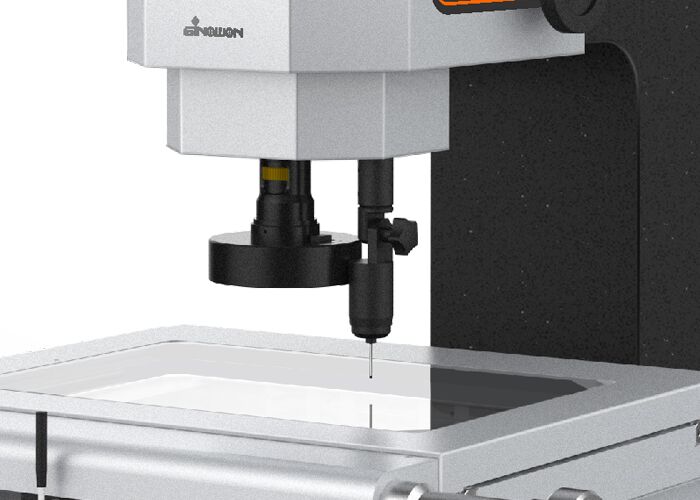

This Optical Measuring Machine iMS-3020P built-in high-performance vision probe, touch probes are available on some systems to extend the range of measurement application

Technical Specification:

Mode	iMS-3020P
Code#	521-160P
Metal Table	458x358mm
Glass Table	356x248mm
X/Y-axis Travel	300x200mm
Z-axis Travel	High-precision linear guide , working travel 200mm
X/Y/Z-axis Travel	0.0005mm
X/Y-axis Accuracy	≤3+L/200(um)
Repeatability	3um
Base and Pillar	High Accuracy Jinan Qing Marble
Illumination System(Software Adjustment)	Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination
	Contour: LED Parallel Illumination
	LED Laser Navigation Lights
CCD Camera	High Resolution 700TV Color CCD Camera
Zoom lens	6.5:1 High Resolution Detented Zoom Lens
Zoom lens	Magnification:0.7X~4.5X；Video Magnification:24.5X~156X

Standard Delivery:

Product Name	Code#	Product Name	Code#
3D Measuring Software	IM3.1	Video Capture Card	527-130
Contour LED Parallel Illumination	425-100	DELL PC System	581-960
Surface 3R/8D LED Illumination	425-130	AV Video Cable	581-940
Laser Positioning System	581-330	RS232 Data Cable	581-930
6.5X Detented Zoom Lens	421-100	Optical Calibration Block	581-800
HD700TVL Color Camera	484-130	Operation Manual	/
